Low Current Transformer Ring Type 2000/5A-5000/5A

Name: Low Current Transformer Ring Type 2000/5A-5000/5A
SKU: 452
Price: 500.00 INR
Availability: InStock

₹500.00

Coil Number: AUTOTRANSFORMER

Color: black

Standard: GB1208-2006/IEC60044-1

Certificate: Available

Accurancy:0.5/1.0

Safety Factor: FS 5

Rated Voltage: 0.72KV

Primary Current: 2000A-5000A

Secondary Current:5A/1A

Working Temperature:-10-50 degree

Name: Tame wound current transformer

Description

Description

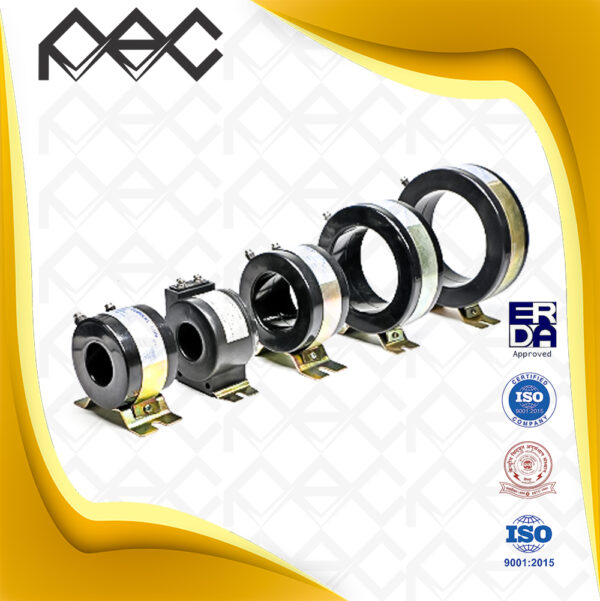

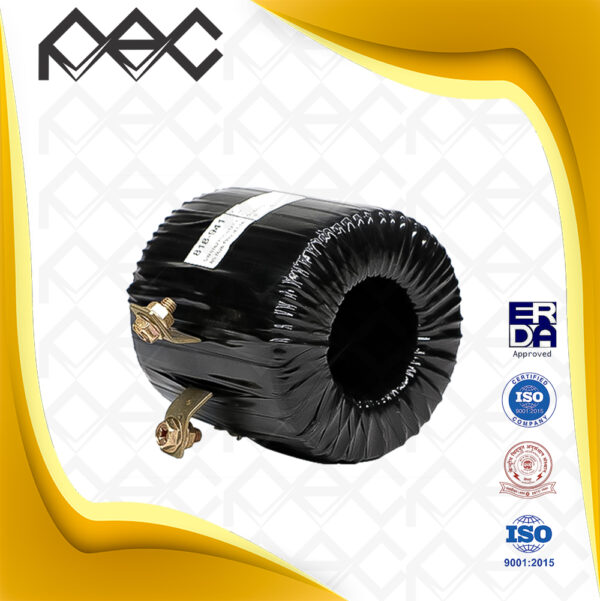

A range (6 standard silicon steel core models) tape wrapping current transformer. It is low cost.

This model current transformer is also wildly used in Southeast Asia countries. It can be operated with

or without foot and plastic cover.

Specifications

Rated frequency	50/60Hz
Rated test voltage	3Kv AC (1 min)
Rated short-time thermal current (Ith)	60In
Rated dynamic current (Idyn)	2.5Ith
Rated voltage (Um)	0.72Kv AC
Continuous overload (Id)	1.2In
Operating temperature	.-10 degree to 50 degree
Housing self-extinguishing class	VO
Safety factor	FS 5
Secondary current	5A/1A

Standard
IEC60044-1, IS 2705/1992
